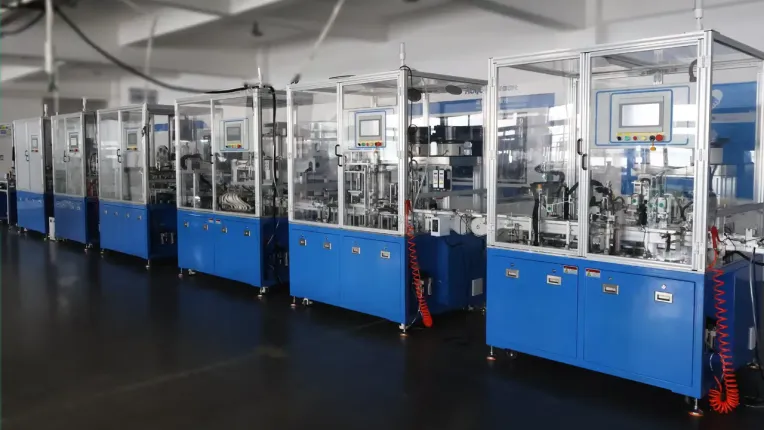

MCCB Automatic Testing Line

Test and filter defective MCCB pieces, fully automated professional testing procedures.

Overview

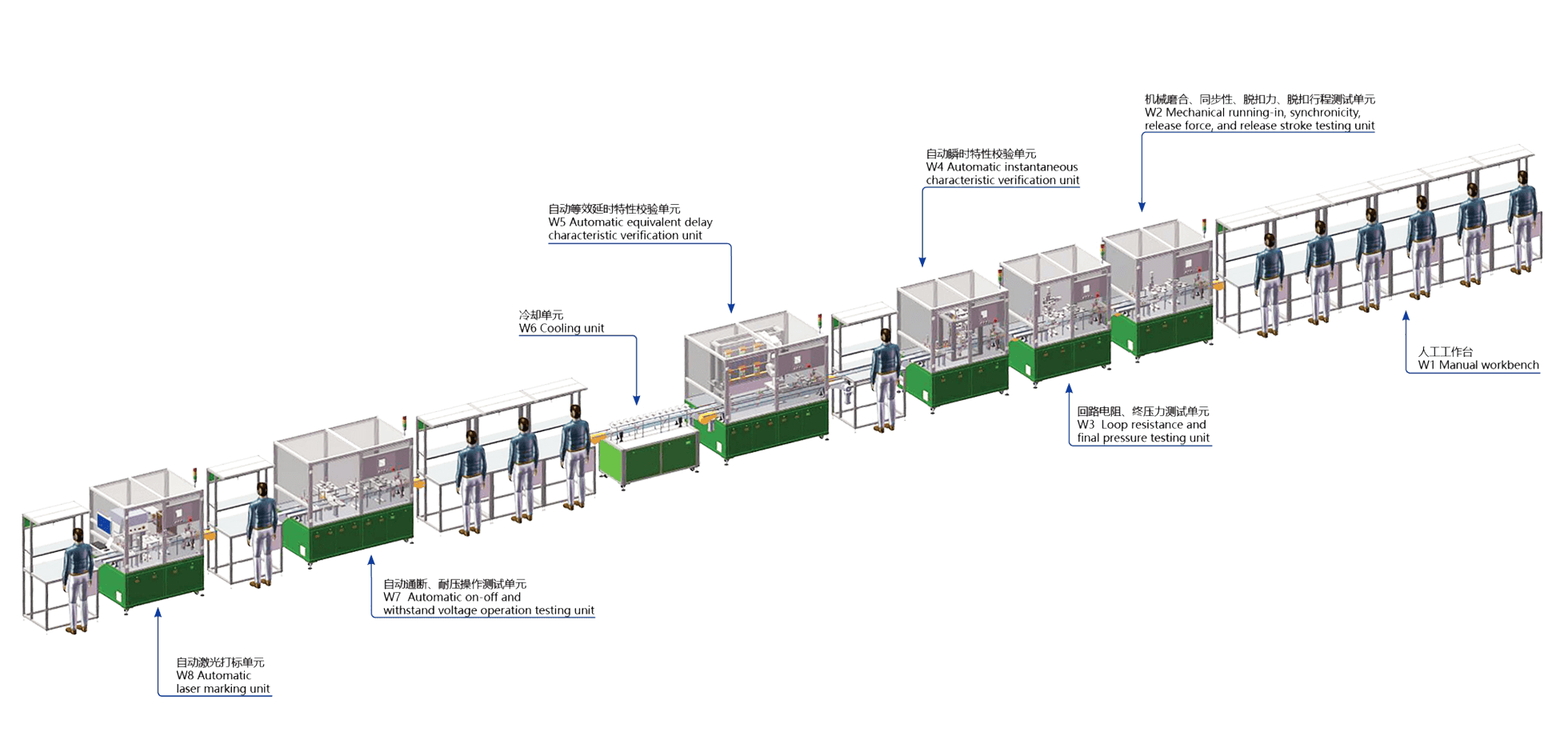

The automated testing line for MCCB (Moulded Case Circuit Breakers) performs precise testing on all key parameters and performances of the circuit breakers, including mechanical break-in, instantaneous testing, time-delay testing, and continuity and withstand voltage testing.

Defective products will be rejected during each testing process to ensure that every product leaving the line is qualified.

1800 Pieces Per Hour

Most Effective MCCB Testing Line On The Market

Huiju builds the highly integrated, automated MCCB Testing line, greatly reduces manufacturing cost and man risks.
Boost your business with us, join automation with us today.

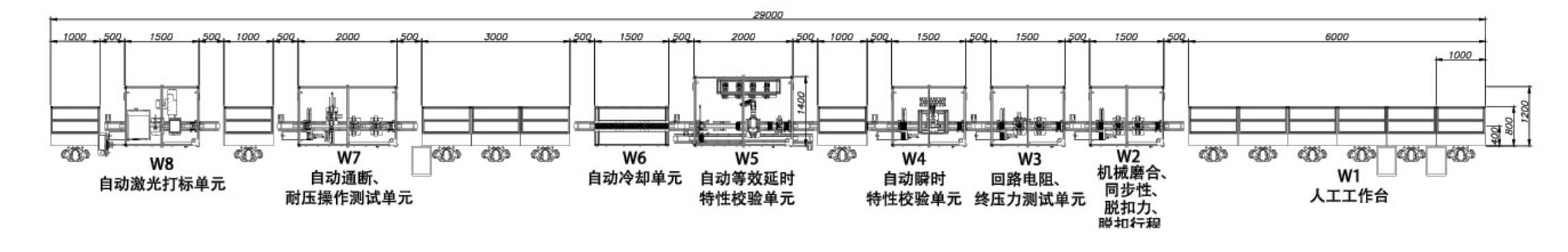

View Layout

Technical Specifications

* Standard Configuration

Line Size:

29.0 * 2.0 * 2.2 m

Total Weight:

5540 kg

Voltage:

220 / 380 v

Air Pressure:

0.6 Mpa

Test Efficiency:

~30 s/pc; Depending on Amps.

OEM Availability:

Appearance and interface

Major Components

* Standard Configuration

PLC:

Omron (Japan)

Control Screen:

MCGS (China)

Cylinder:

SMC (Japan)

Major Sensors:

Omron (Japan)

Elec. Motor:

Panasonic (Japan)

Robotics:

Epson / Fanuc (Japan)

Electric Appliance Focused
Huiju has been focused On MCB / MCCB production since its start-up from year 2013.
Technology Strength
Constantly researching on visual algorithm, IoT, sensor and driving, heat / stability management.
Highly experienced
Working with MCB / MCCB manufacturer giants for years, Huiju knows what and how.
Reliable Performance
Major components from reputed world class brands for durable lifetime.
Friendly Start
Before sales, we help to analysis feasibility and efficiency, offering similar projects for reference.
Worry Free Service
After-sale offering on site installation and commissioning. operation / maintenance training.
