MCB Thermal Trip Automatic Welding Line

Perform fully automated welding of multiple components.

Overview

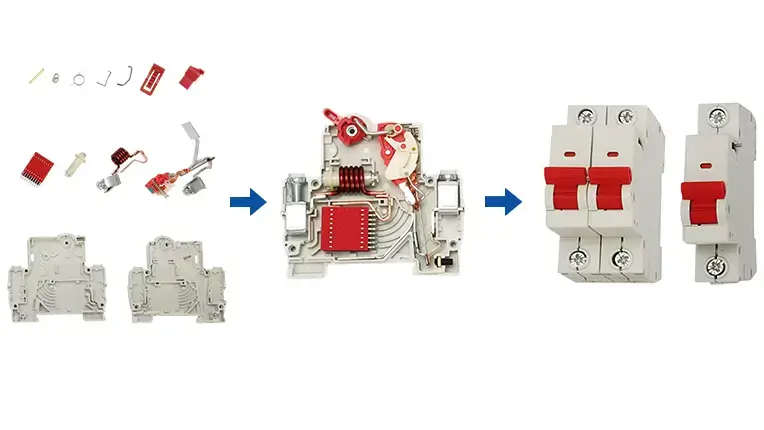

The MCB thermal trip welding line can automatically assemble, hot-rivet and weld moving contact trips, copper wires, connecting pieces, contact plates, and bimetallic components in the thermal system of miniature circuit breakers.

Each piece of equipment has a visual inspection function to inspect each process and ensure that the products leaving the circuit are qualified.

1800 Pieces Per Hour

Most Effective MCB Production On The Market

Huiju builds the highly integrated, automated MCB assembly line, greatly reduces manufacturing cost and man risks.
Boost your business with us, join automation with us today.

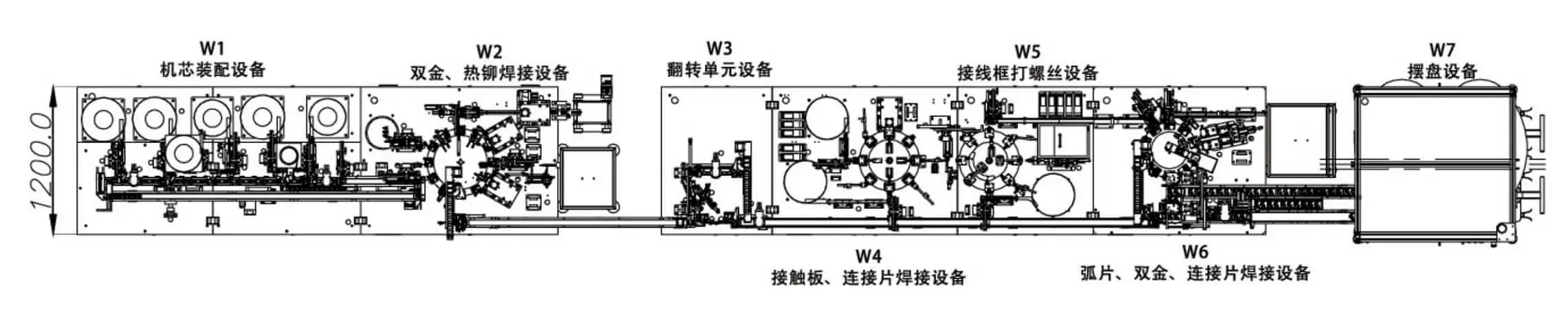

View Layout

View Images

Technical Specifications

* Standard Configuration

Line Size:

12.0 * 1.8 * 1.9 m

Total Weight:

9254 kg

Voltage:

220 / 380 v

Air Pressure:

0.6 Mpa

Production Efficiency:

3 s/pc avg.

OEM Availability:

Appearance and interface

Major Components

* Standard Configuration

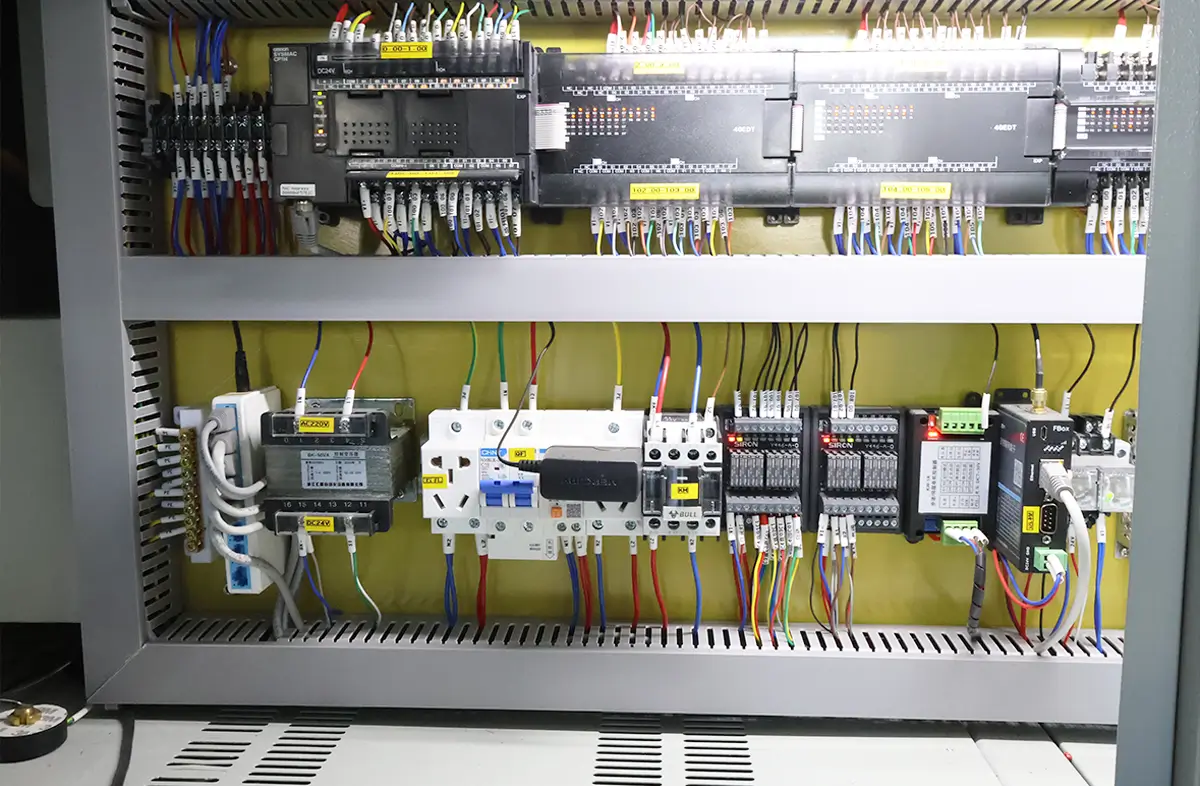

PLC:

Omron (Japan)

Control Screen:

MCGS (China)

Cylinder:

SMC (Japan)

Major Sensors:

Omron (Japan)

Elec. Motor:

Panasonic (Japan)

Robotics:

Epson / Fanuc (Japan)

Electric Appliance Focused
Huiju has been focused On MCB / MCCB production since its start-up from year 2013.
Technology Strength
Constantly researching on visual algorithm, IoT, sensor and driving, heat / stability management.
Highly experienced
Working with MCB / MCCB manufacturer giants for years, Huiju knows what and how.
Reliable Performance
Major components from reputed world class brands for durable lifetime.
Friendly Start
Before sales, we help to analysis feasibility and efficiency, offering similar projects for reference.
Worry Free Service
After-sale offering on site installation and commissioning. operation / maintenance training.
